產品介紹

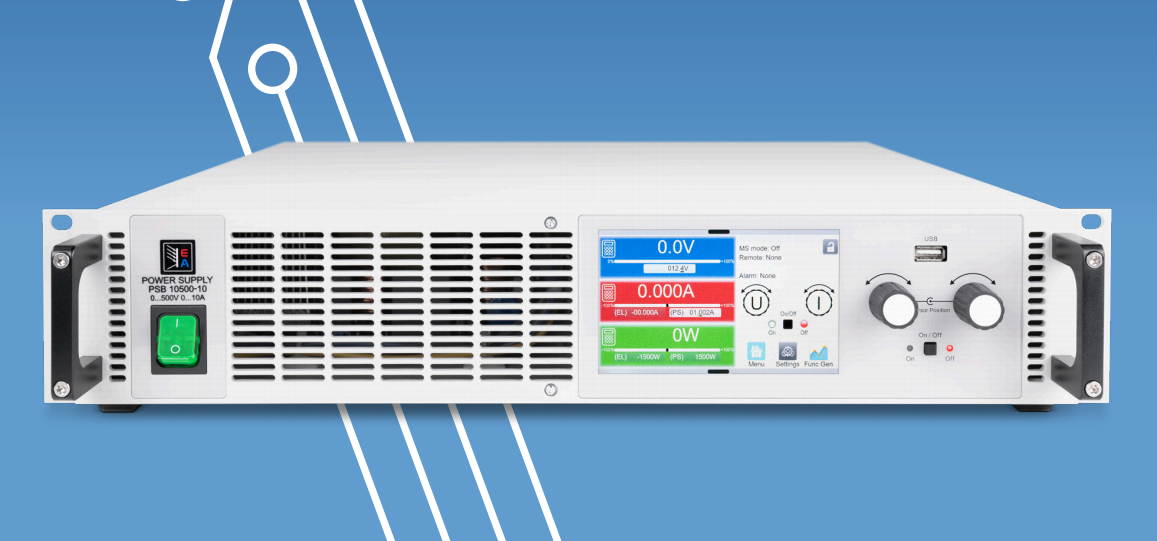

EA-PSI 10360-30 2U為德國EA最新推出的高精度直流電源，在進口直流電源中被廣泛用于汽車測試電源等領域。
EA-PSI 10360-30 2U產品技術規格書（點擊右鍵另存為）德國EA代理，上海雨芯儀器科技有限公司提供
EA-PSI 10360-30 2U Features
Wide range input, 110 V - 240 V +10 % 1ph AC
Active Power-Factor-Correction, typical 0.99
Very high efficiency up to over 95 %
Voltage from 0 - 60 V up to 0 - 1500 V
Currents from 0 - 6 A up to 0 - 120 A
Flexible power regulated DC output stages
(autoranging)
Regulation mode CV, CC, CP, CR with fast crossover
Digital regulation, high resolution with 16bit ADCs and
DACs, selection of control speed: Normal, Fast, Slow
Color 5“ TFT display with touch control and intuitive
user interface
Galvanically isolated Share-Bus for parallel operation
of all power classes in the 10000 series
Master-Slave bus for parallel operation of up to 64
units of all power classes in the 10000 series
Integrated function generator with predefined curves
Predefined automotive test procedures for LV123,
LV124 and LV148
Command languages and drivers: SCPI and ModBus,
LabVIEW, IVI
Build-in Interfaces
USB
Ethernet
Analog
USB Host
Master-Slave-Bus
Share-Bus
Software
EA-Power Control
Optional Interfaces
CAN
CANopen
RS232
Profibus
EtherCAT
Profinet, with one or two ports
Modbus, with one or two ports
Ethernet, with one or two ports
Software
EA-Power Control
| Technical Specifications | EA-PSI 10360-30 2U |
| DC-Output | |
| Voltage range | 0 - 360 V |
| Ripple rms CV | 30 mV BW 300 kHz |
| Ripple and noise p-p CV | 300 mV BW 20 MHz |
| Current range | 0 - 30 A |
| Power range *1 | 0 - 3000 W (0 - 1200 W) |
| Resistance range | 0.4 Ω - 800 Ω |
| Output capacity | 660 μF |
| Efficiency up to | 94.5% *2 |
| Isolation | |
| Negative DC-Pol <-> PE |
±1000 V DC |
| Positive DC-Pol <-> PE | +1000 V DC |
| Article number | 06230849 |
*1 The value in brackets applies to the state of derating (power reduction) for 110 V AC and 120 V AC grid
*2 100% Power and 100% Output voltage
| EA-PSI 10360-30 2U General specifications | |
| AC-Input | |
| Voltage, Phases | 110 V / 120 V / 208 V / 220 V / 230 V / 240 V ±10%, 1ph AC (110 V / 120 V 1ph with Derating, see model table) |
| Frequency | 45-66 Hz |
| Power factor | >0.99 |
| Leakage current | < 3.5 mA |
| Overvoltage category | 2 |
| Pollution degree | 2 |
| DC-Output static | |
| Load regulation CV | ≤0.05% FS (0 - 100% load, constant input voltage and constant temperature) |
| Line regulation CV | ≤0.01% FS (110 V - 240 V AC +10% input voltage, constant load and constant temperature) |
| Stability CV | ≤0.02% FS (Over 8hrs interval following 30 minutes warm-up, constant input voltage, load and temperature) |
| Temperature coefficient CV | ≤30ppm/°C (Following 30 minutes warm up) |
| Compensation (Remote Sense) | ≤5% UNominal |
| Load regulation CC | ≤0.1% FS (0 - 100% load, constant input voltage and constant temperature) |
| Line regulation CC | ≤0.01% FS (110 V - 240 V AC +10% input voltage, constant load and constant temperature) |
| Stability CC | ≤0.02% FS (Over 8hrs interval following 30 minutes warm-up, constant input voltage, load and temperature) |
| Temperature coefficient CC | ≤50ppm/°C (Following 30 minutes warm up) |
| Load regulation CP | ≤0.3% FS (0 - 100% load, constant input voltage and constant temperature) |
| Load regulation CR | ≤0.3% FS + 0.1% FS current (0 - 100% load, constant input voltage and constant temperature) |
| Protective functions | |
| OVP |
Overvoltage protection adjustable, 0 - 110% UNominal |
| OCP | Overcurrent protection adjustable, 0 - 110% INominal |
| OPP | Overpower protection adjustable, 0 - 110% PNominal |
| OT | Overtemperature protection, output shuts down in case of insufficient cooling |
| DC-Output dynamic | |
| Rise time 10 - 90% CV | ≤20 ms |
| Fall time 90 - 10% CV | ≤20 ms |
| Rise time 10 - 90% CC | ≤10 ms |
| Fall time 90 - 10% CC | ≤10 ms |
| Display accuracy |
|
| Voltage |
≤0.05% FS |
| Current | ≤0.1% FS |
| Insulation | |
| AC-Input to DC-Output |
3750 Vrms (1 Minute), creepage >8 mm |
| AC-Input to case (PE) | 2500 Vrms |
| DC-Output to case (PE) | Depending on the model, see model table |
| DC-Output to Interfaces | 1000 V DC (Model up to 360 V output), 1500 V DC (Model from 500 V output) |
| Interfaces Digital | |
| Built-in, galvanically isolated |
USB, Ethernet (100 MBit) for communication 1x USB Host for data acquisition |
| Optional, galvanically isolated | CAN, CANopen, RS232, ModBus TCP, Profinet, Profibus, EtherCAT, Ethernet |
| Interfaces Analog | |
| Built-in, galvanically isolated | 15-pole D-Sub |
| Signal range | 0 - 10 V or 0 - 5 V (switchable) |
| Inputs | U, I, P, R, remote control on/off, DC output on/off, resistance mode on/off |
| Outputs | Monitor U and I, alarms, reference voltage, status DC, status CV/CC |
| Accuracy U / I / P / R | 0 - 10 V ≤0.2%, 0 - 5 V ≤0.4% |
| Device configuration | |
| Parallel operation |
Up to 64 units of any power class in series 10000, with Master-Slave-Bus and Share-Bus |
| Safety and EMC | |
| Safety |
EN 61010-1 IEC 61010-1 UL 61010-1 CSA C22.2 No 61010-1 BS EN 61010-1 |
| EMC | EN 55011, class B CISPR 11, class B FCC 47 CFR Part 15B, Unintentional Radiator, class B EN 61326-1 include tests according to: - EN 61000-4-2 - EN 61000-4-3 - EN 61000-4-4 - EN 61000-4-5 - EN 61000-4-6 |
| Safety protection class | 1 |
| Ingress Protection | IP20 |
| Environmental conditions | |
| Operating temperature |
0 - 50 °C |
| Storage temperature | -20 - 70 °C |
| Humidity | ≤80% RH, non-condensing |
| Altitude | ≤2000 m (≤6600 ft) |
| Mechanical construction | |
| Cooling |
Forced air flow from front to rear, temperature controlled fans |
| Dimensions (B x H x T) | 19“ x 2U x 462 mm (Enclosure only, not over all) |
| Weight | 9.5 kg (21 Lbs) 1500 W unit 12,7 kg (28 Lbs) 3000 W unit |
